# Basic Config
substitutions:
  name: alfawise
  friendly_name: "alfawise SJ-7"

  #commands
  receive_timer1h: "55:AA:03:1F:09:01:2B"
  receive_timer3h: "55:AA:03:1F:09:02:2C"
  receive_timer6h: "55:AA:03:1F:09:03:2D"
  receive_high: "55:AA:03:1F:07:02:2A"
  receive_low: "55:AA:03:1F:07:01:29"
  receive_lava_lamp: "55:AA:03:1F:02:01:24"
  receive_rainbow_slow: "55:AA:03:1F:0C:01:2E"
  receive_rainbow_fast: "55:AA:03:1F:0C:03:30"
  receive_lava_lamp_on_diff: "55:AA:02:04:01:06"
  receive_diff_on_switch: "55:AA:02:03:01:05"
  receive_light_off_switch: "55:AA:02:04:00:05"
  receive_light_diff_off_esp: "55:AA:02:1F:0E:2E"
  receive_diff_off_esp: "55:AA:03:1F:07:00:28"
  receive_light_off_esp: "55:AA:03:1F:02:00:23"

esphome:
  name: ${name}
  includes:
    - uart_read_line_sensor.h
    - fake_fan_output.h

  on_boot:
    priority: -100.0
    then:
      - switch.turn_off: power_high
      - lambda: id(${name}_fan).speed = 0;
      - switch.turn_off: lava_lamp
      - switch.turn_on: wifi_blinkin_slow
      - delay: 5s
      - switch.turn_off: wifi_blinkin_slow

esp8266:
  board: esp01_1m
debug:
# Enable logging
logger:
  baud_rate: 0
  level: debug
  esp8266_store_log_strings_in_flash: False

ota:
  password: "xxx"

uart:
  id: uart_bus
  tx_pin: GPIO1
  rx_pin: GPIO3
  baud_rate: 9600
  stop_bits: 1
#  debug:
#    direction: BOTH
#    dummy_receiver: false
#    after:
#      delimiter: "\n"
#      bytes: 256
#    sequence:
#      - lambda: UARTDebug::log_hex(direction, bytes, ':');

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:

api:
web_server:
  port: 80

  # Sync time with Home Assistant.
time:
  - platform: homeassistant
    id: homeassistant_time

  - platform: sntp
    on_time:
      # Every 1 seconds
      - seconds: /1
        then:
          - if:
              condition:
                and:
                  - switch.is_off: power_low
                  - switch.is_off: power_high
                  - fan.is_on: ${name}_fan
              then:
                - switch.turn_on: update_fan_speed
              else:
                - if:
                    condition:
                      and:
                        - switch.is_on: power_low
                        - switch.is_off: power_high
                        - or:
                            - lambda: |-
                                if (id(${name}_fan).speed == 2) {
                                  return true;
                                }else{
                                  return false;
                                }
                            - lambda: |-
                                if (id(${name}_fan).speed == 0) {
                                  return true;
                                }else {
                                  return false;
                                }
                    then:
                      - switch.turn_on: update_fan_speed
                    else:
                      - if:
                          condition:
                            and:
                              - switch.is_off: power_low
                              - switch.is_on: power_high
                              - or:
                                  - lambda: |-
                                      if (id(${name}_fan).speed ==1) {
                                        return true;
                                      }else {
                                        return false;
                                      }
                                  - lambda: |-
                                      if (id(${name}_fan).speed == 0) {
                                        return true;
                                      }else {
                                        return false;
                                      }
                          then:
                            - switch.turn_on: update_fan_speed

# Text sensors with UART received information.
text_sensor:
  - platform: custom
    lambda: |-
      auto uart_readline = new UartReadLineSensor(id(uart_bus));
      App.register_component(uart_readline);
      return {uart_readline};
    text_sensors:
      id: "uart_readline"
      name: ${name} serial

  - platform: wifi_info
    ip_address:
      name: ${name} ip
    ssid:
      name: ${name} ssid
    bssid:
      name: ${name} bssid
  - platform: version
    name: ${name} ESPHome Version

sensor:
  # Uptime sensor
  - platform: uptime
    name: ${name} uptime
    unit_of_measurement: days
    update_interval: 300s
    accuracy_decimals: 1
    filters:
      - multiply: 0.000011574
  # WiFi Signal sensor
  - platform: wifi_signal
    name: ${name} signal
    update_interval: 60s
    accuracy_decimals: 0

switch:
  - platform: template
    id: timer1h
    name: ${name} Timer 1H
    icon: mdi:timer-sand-empty
    disabled_by_default: false
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_timer1h}") {
        return true;
      } else if(id(uart_readline).state == "${receive_timer3h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_timer6h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_diff_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      then:
        - if:
            condition:
              and:
                - fan.is_off: ${name}_fan
            then:
              - fan.turn_on:
                  id: ${name}_fan
                  speed: 1
              - delay: 500ms
        - uart.write: [0x55, 0xAA, 0x03, 0x09, 0x01, 0x00, 0x0c]
        - delay: 1h
        - uart.write: [0x55, 0xaa, 0x03, 0x0e, 0x00, 0x00, 0x10]

  - platform: template
    id: timer3h
    name: ${name} Timer 3H
    icon: mdi:timer-sand-complete
    disabled_by_default: false
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_timer3h}") {
        return true;
      } else if(id(uart_readline).state == "${receive_timer1h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_timer6h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_diff_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      then:
        - if:
            condition:
              and:
                - fan.is_off: ${name}_fan
            then:
              - fan.turn_on:
                  id: ${name}_fan
                  speed: 1
              - delay: 500ms
        - uart.write: [0x55, 0xAA, 0x03, 0x09, 0x02, 0x00, 0x0d]
        - delay: 3h
        - uart.write: [0x55, 0xaa, 0x03, 0x0e, 0x00, 0x00, 0x10]
    turn_off_action:
      then:
        - if:
            condition:
              and:
                - fan.is_on: ${name}_fan
            then:
              - uart.write: [0x55, 0xAA, 0x03, 0x09, 0x01, 0x00, 0x0c]

  - platform: template
    id: timer6h
    name: ${name} Timer 6H
    icon: mdi:timer-sand
    disabled_by_default: false
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_timer6h}") {
        return true;
      } else if(id(uart_readline).state == "${receive_timer1h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_timer3h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_diff_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      then:
        - if:
            condition:
              and:
                - fan.is_off: ${name}_fan
            then:
              - fan.turn_on:
                  id: ${name}_fan
                  speed: 1
              - delay: 500ms
        - uart.write: [0x55, 0xAA, 0x03, 0x09, 0x03, 0x00, 0x0e]
        - delay: 6h
        - uart.write: [0x55, 0xaa, 0x03, 0x0e, 0x00, 0x00, 0x10]

    turn_off_action:
      then:
        - if:
            condition:
              and:
                - fan.is_on: ${name}_fan
            then:
              - uart.write: [0x55, 0xAA, 0x03, 0x09, 0x01, 0x00, 0x0c]

  - platform: template
    id: power_high
    icon: mdi:fan
    disabled_by_default: true
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_high}") {
        return true;
      } else if (id(uart_readline).state == "${receive_diff_on_switch}") {
        return true;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_diff_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      - uart.write: [0x55, 0xAA, 0x03, 0x07, 0x02, 0x00, 0x0B]
    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x07, 0x00, 0x00, 0x09]

    on_turn_on:
      - switch.template.publish:
          id: power_low
          state: OFF
    on_turn_off:
      - switch.template.publish:
          id: power_low
          state: OFF

  - platform: template
    disabled_by_default: true
    id: power_low
    icon: mdi:fan
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_low}") {
        return true;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_diff_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x07, 0x01, 0x00, 0x0A]

    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x07, 0x00, 0x00, 0x09]

    on_turn_on:
      - switch.template.publish:
          id: power_high
          state: OFF
    on_turn_off:
      - switch.template.publish:
          id: power_high
          state: OFF

  - platform: template
    disabled_by_default: true
    id: wifi_blinkin_slow
    icon: mdi:led-on
    optimistic: true
    assumed_state: true
    turn_on_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x03, 0x03, 0x00, 0x08]
    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x03, 0x01, 0x00, 0x06]

  - platform: template
    name: ${name} Lava Lamp
    id: lava_lamp
    icon: mdi:lava-lamp
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_lava_lamp}") {
        return true;
      } else if (id(uart_readline).state == "${receive_lava_lamp_on_diff}") {
        return true;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x02, 0x00, 0x01, 0x05]
      - uart.write: [0x55, 0xaa, 0x03, 0x02, 0x01, 0x01, 0x06]
    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x02, 0x00, 0x01, 0x05]
    on_turn_on:
      - switch.template.publish:
          id: rainbow_fast
          state: OFF
      - switch.template.publish:
          id: rainbow_slow
          state: OFF
    on_turn_off:
      - switch.template.publish:
          id: rainbow_fast
          state: OFF
      - switch.template.publish:
          id: rainbow_slow
          state: OFF

  - platform: template
    name: ${name} Rainbow Slow
    id: rainbow_slow
    icon: mdi:lightbulb-multiple
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_rainbow_slow}") {
        return true;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x02, 0x00, 0x01, 0x05]
      - uart.write: [0x55, 0xaa, 0x03, 0x0c, 0x01, 0x00, 0x0f]

    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x02, 0x00, 0x01, 0x05]

    on_turn_on:
      - switch.template.publish:
          id: rainbow_fast
          state: OFF
      - switch.template.publish:
          id: lava_lamp
          state: OFF
    on_turn_off:
      - switch.template.publish:
          id: rainbow_fast
          state: OFF
      - switch.template.publish:
          id: lava_lamp
          state: OFF

  - platform: template
    name: ${name} Rainbow Fast
    id: rainbow_fast
    icon: mdi:lightbulb-group
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_rainbow_fast}") {
        return true;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x02, 0x00, 0x01, 0x05]
      - uart.write: [0x55, 0xaa, 0x03, 0x0c, 0x03, 0x00, 0x11]

    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x02, 0x00, 0x01, 0x05]

    on_turn_on:
      - switch.template.publish:
          id: lava_lamp
          state: OFF
      - switch.template.publish:
          id: rainbow_slow
          state: OFF
    on_turn_off:
      - switch.template.publish:
          id: lava_lamp
          state: OFF
      - switch.template.publish:
          id: rainbow_slow
          state: OFF

  - platform: template
    disabled_by_default: true
    id: update_fan_speed
    optimistic: True
    turn_on_action:
      then:
        - delay: 500ms
        - if:
            condition:
              and:
                - switch.is_off: power_low
                - switch.is_off: power_high
            then:
              - fan.turn_off: ${name}_fan
            else:
              - if:
                  condition:
                    and:
                      - switch.is_on: power_low
                      - switch.is_off: power_high
                  then:
                    - fan.turn_on:
                        id: ${name}_fan
                        speed: 1
                  else:
                    - if:
                        condition:
                          and:
                            - switch.is_off: power_low
                            - switch.is_on: power_high
                        then:
                          - fan.turn_on:
                              id: ${name}_fan
                              speed: 2
        - switch.turn_off: update_fan_speed

output:
  - platform: custom
    type: float
    outputs:
      id: fanoutput
    lambda: |-
      auto ${name}_fan = new FakeFanOutput();
      App.register_component(${name}_fan);
      return {${name}_fan};

fan:
  - platform: speed
    output: fanoutput
    id: ${name}_fan
    name: "${friendly_name} Fan"
    speed_count: 2
    on_turn_on:
      then:
        - if:
            condition:
              lambda: return (id(${name}_fan).speed == 0);
            then:
              - fan.turn_on:
                  id: ${name}_fan
                  speed: 1
              - switch.turn_on: power_low
              - delay: 500ms
              - switch.turn_on: timer1h
            else:
              - if:
                  condition:
                    lambda: return (id(${name}_fan).speed == 1);
                  then:
                    - switch.turn_on: power_low
                  else:
                    - if:
                        condition:
                          lambda: return (id(${name}_fan).speed == 2);
                        then:
                          - switch.turn_on: power_high
        - if:
            condition:
              and:
                - switch.is_off: timer1h
                - switch.is_off: timer3h
                - switch.is_off: timer6h
            then:
              - delay: 500ms
              - switch.turn_on: timer1h
    on_turn_off:
      then:
        - lambda: id(${name}_fan).speed = 0;
        - switch.turn_off: power_low
        - switch.turn_off: power_high
    on_speed_set:
      then:
        - if:
            condition:
              and:
                - lambda: return (id(${name}_fan).speed == 0);
                - or:
                    - switch.is_on: power_low
                    - switch.is_on: power_high
            then:
              - switch.turn_off: power_high
              - switch.turn_off: power_low
            else:
              - if:
                  condition:
                    - lambda: return (id(${name}_fan).speed == 1);
                    - switch.is_off: power_low
                  then:
                    - switch.turn_on: power_low
                  else:
                    - if:
                        condition:
                          - lambda: return (id(${name}_fan).speed == 2);
                          - switch.is_off: power_high
                        then:
                          - switch.turn_on: power_high
              - if:
                  condition:
                    and:
                      - switch.is_off: timer1h
                      - switch.is_off: timer3h
                      - switch.is_off: timer6h
                  then:
                    - delay: 500ms
                    - switch.turn_on: timer1h

captive_portal:

Copy
#include "esphome.h"
using namespace esphome;

class FakeFanOutput : public Component, public FloatOutput {
  public:
    void write_state(float state) override {
      if (state < 0.1) {
        // OFF

      } else if (state < 0.5) {
        // low speed

      } else {
        // high speed

      }
    }
};

Copy
#include "esphome.h"



static int pos = 0;
char outputBuffer[3];
const int max_line_length = 80;
static char buffer[max_line_length];
int j = 0;
int startMarker = 0x55;
int secondMarker = 0xAA;
int timeOut = 50;
bool receiveUntilTimeout;
bool valuesending = false;
int timeReceived;

class UartReadLineSensor : public Component, public UARTDevice, public TextSensor {
 public:
  UartReadLineSensor(UARTComponent *parent) : UARTDevice(parent) {}


// Helper function for converting byte value to 2-digit hex string
  void byte2HexStr(byte val, char* outputBuffer){

    const char HEX_DIGITS[17] = "0123456789ABCDEF";

    byte upper_nibble_index = (val & 0xf0) >> 4;
    byte lower_nibble_index = val & 0xf;

    outputBuffer[0] = HEX_DIGITS[upper_nibble_index];
    outputBuffer[1] = HEX_DIGITS[lower_nibble_index];
    outputBuffer[2] = '\0';
  }


  void setup() override {
    // nothing to do here
  }

  int sendvalue(char* buffer, bool valuesending)
  {
    valuesending = true;
    std::string myStrObject;
    myStrObject = "";
    // buffer size
    for(int i = max_line_length; i > 0; i--) {
      if (j == 0) {
        if (buffer[i] > 0 ) {
          j = i + 1;
          break;
        }
      }
    }
    // convert to hex
    for(int i = 0; i < j; i++) {
      byte2HexStr(buffer[i], outputBuffer);
      myStrObject += outputBuffer;
      // add separator except for the last element
      if(i < j - 1) {
        myStrObject += ":";
      }
    }
    // publish result
    publish_state(myStrObject.c_str());
    // reset var
    j = 0;
    pos = 0;
    for( int i = 0; i < max_line_length + 1;  ++i )
    buffer[i] = (char)0;
    valuesending = false;
    return 1;
  }

  // Store values
  int storevalue(char* buffer, int readch, bool UntilTimeout, bool valuesending)
  {
    while (valuesending == true) {
      delay(200);
    }
    buffer[pos++] = readch;
    buffer[pos] = 0;
    if (UntilTimeout) {
      receiveUntilTimeout = true;
    }
    timeReceived = millis();
    return 1;
  }

  void loop() override {
    int readch;
    if (available() >= 1 && !receiveUntilTimeout) {
      readch = Serial.read();
      if (readch == startMarker) {
        storevalue(buffer, readch, true, valuesending);
      }
    }
    if (receiveUntilTimeout) {
      if (Serial.available() > 0)
      {
        readch = Serial.read();
        if (readch == startMarker) {
          sendvalue(buffer,valuesending);
        }
        if (readch == secondMarker) {
          if (pos > 1 ) {
            sendvalue(buffer,valuesending);
            storevalue(buffer, 0x55, false, valuesending);
          }
        }
        storevalue(buffer, readch, false, valuesending);
      }
      else //Serial.available == 0 and nothing to read
      {
        if (millis() - timeReceived >= timeOut)
        {
          receiveUntilTimeout = false;
          sendvalue(buffer,valuesending);
        }
      }
    }
  }
};

Copy

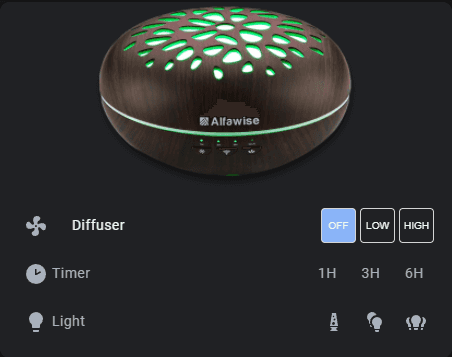

type: custom:vertical-stack-in-card
cards:
  - type: picture-entity
    entity: switch.schedule_lave_linge

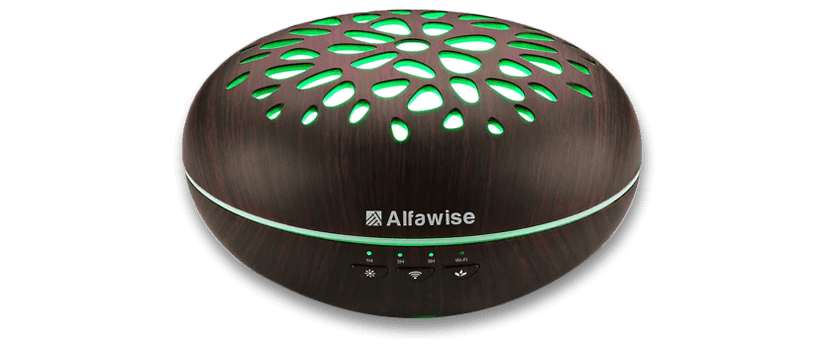

    image: /local/diffuser.png
    show_state: false
    show_name: false
    tap_action:
      action: none
    hold_action:
      action: none
  - type: entities
    entities:
      - entity: fan.alfawise_sj_7_fan
        type: custom:fan-percent-button-row
        name: Diffuser
        state_color: true
        isTwoSpeedFan: true
        customSetpoints: true
        reverseButtons: true
        sendStateWithSpeed: false
        lowPercentage: 50
        hiPercentage: 100
        width: 35px
        height: 35px
      - type: custom:paper-buttons-row
        buttons:
          - layout: icon|name
            icon: mdi:clock-time-two
            name: Timer
            style:
              button:
                width: 150%
                justify-content: left
            tap_action:
              action: none
          - entity: switch.alfawise_timer_1h
            layout: name
            name: 1H
            style:
              button:
                width: 17%
          - entity: switch.alfawise_timer_3h
            layout: name
            name: 3H
            style:
              button:
                width: 17%
          - entity: switch.alfawise_timer_6h
            layout: name
            name: 6H
            style:
              button:
                width: 17%
      - type: custom:paper-buttons-row
        buttons:
          - layout: icon|name
            icon: mdi:lightbulb
            name: Light
            style:
              button:
                width: 150%
                justify-content: left
            tap_action:
              action: none
          - entity: switch.alfawise_lava_lamp
            layout: icon
            style:
              button:
                width: 15%
          - entity: switch.alfawise_rainbow_slow
            layout: icon
            style:
              button:
                width: 15%
          - entity: switch.alfawise_rainbow_fast
            layout: icon
            style:
              button:
                width: 15%
