Etekcity Voltson ESW01-EU

Etekcity Voltson ESW01-EU

Device Type: switch
Electrical Standard: eu
Board: esp8266

Flashing

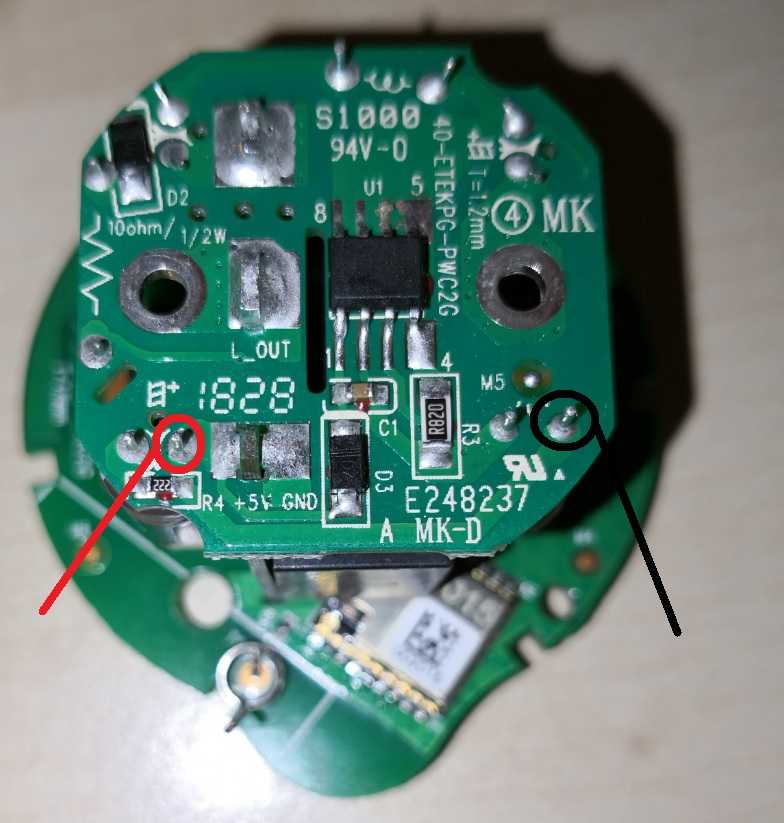

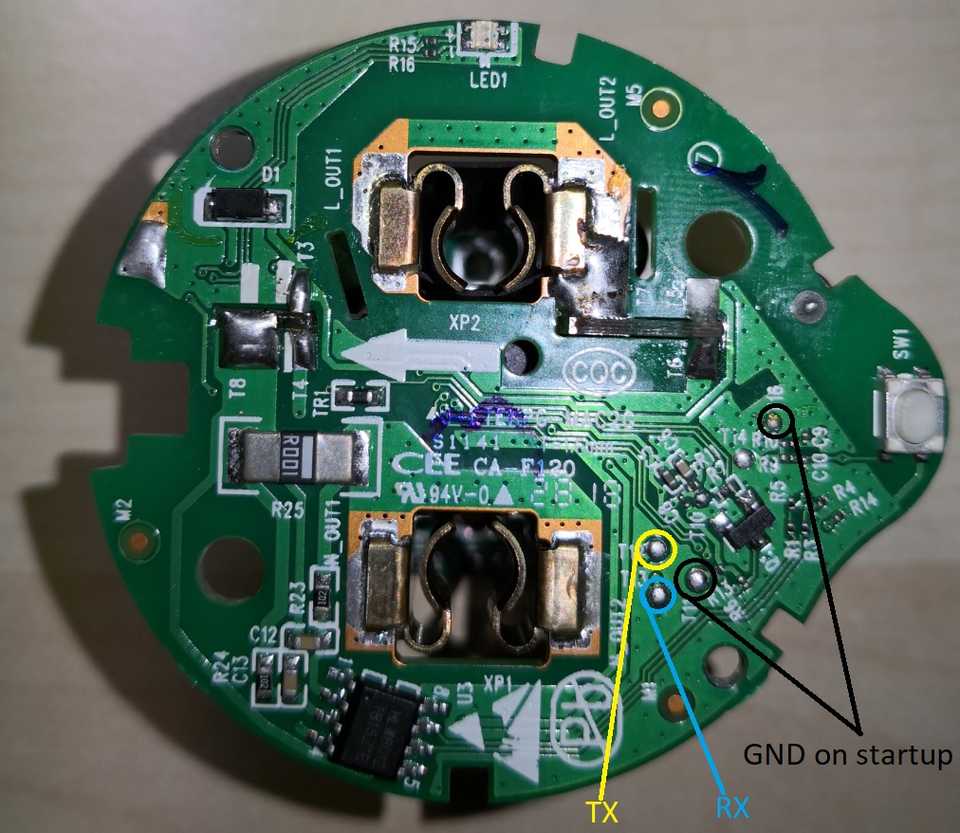

To reach the ESP pins, you need to open the device by unscrewing two (really) small Torx on the front and get the board out with four Philipps screws. Then, all necessary pads for flashing are accessible. Attach 5V and GND at the bottom, preferably with test hooks. PCB Bottom For flashing, T12 is TX and T13 is RX. During boot, T11 and T16 pads need to be connected to GND. Easiest is to connect these pads with pogo pins. PCB Top

GPIO Pinout

PinFunction
GPIO4Relay
GPIO5LED blue
GPIO12HLWBL CF1 Pin
GPIO13HLW8012 CF Pin
GPIO14Button
GPIO16LED yellow

The HLW8012 SEL pin is permanently pulled high, so you can only read power and voltage. With a small calculation trick you can get current values though (see current_calculated below).

Basic Configuration

esphome:
  platform: ESP8266
  arduino_version: 2.5.1
  board: esp01_1m


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password


status_led:
  pin:
    number: GPIO5


output:
- platform: gpio
  id: led1
  pin: GPIO16


switch:
- platform: gpio
  name: "Relay"
  id: switch1
  pin: GPIO4
  restore_mode: RESTORE_DEFAULT_ON
  on_turn_on:
    - output.turn_on: led1
  on_turn_off:
    - output.turn_off: led1


binary_sensor:
  - platform: gpio
    id: button1
    pin:
      number: GPIO14
      mode: INPUT_PULLUP
      inverted: true
    on_press:
      - switch.toggle: switch1


sensor:
  - platform: hlw8012
    sel_pin: 0   # not connected
    cf_pin: GPIO13
    cf1_pin: GPIO12
    voltage:
      id: voltage
      name: Voltage
    power:
      id: wattage
      name: Wattage
        on_value:
          - sensor.template.publish:
              id: hlw8012_current_calculated
              state: !lambda 'return id(hlw8012_power).state / id(hlw8012_voltage).state;'
    update_interval: 10s
    initial_mode: VOLTAGE
    change_mode_every: 4294967295 # basically never
  - platform: template #disabled
    id: current_calculated
    name: "Current (calculated)"
