esphome:
  name: grec1
  friendly_name: "GREC1"

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:
  services:
    - service: reset_total_energy
      then:
        - button.press:
            id: button_reset_total
  encryption:
    key: "<YOUR_API_KEY>"

ota:
  - platform: esphome
    password: "<YOUR_OTA_PASSWORD>"

substitutions:
  device_name: grec1
  friendly_name: GREC1

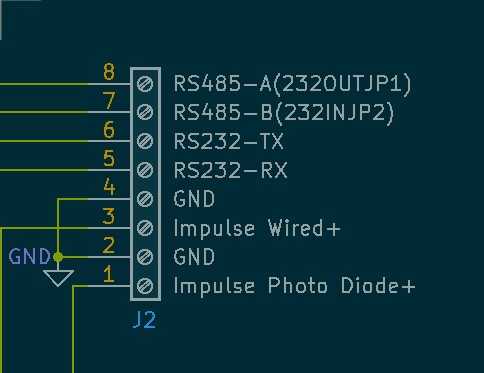

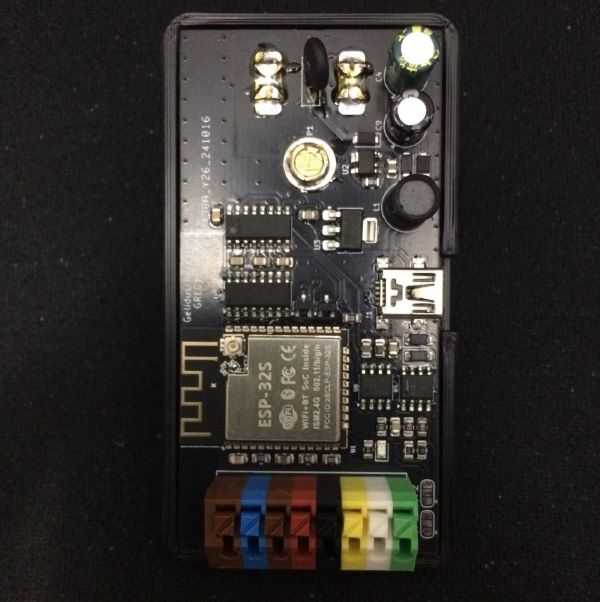

  # GPIO J2 Connections
  #   |       GREC1       |
  #   |                   |
  #   | ----------------- |
  #   | |1|2|3|4|5|6|7|8| |
  #   | ----------------- |
  #     -----------------

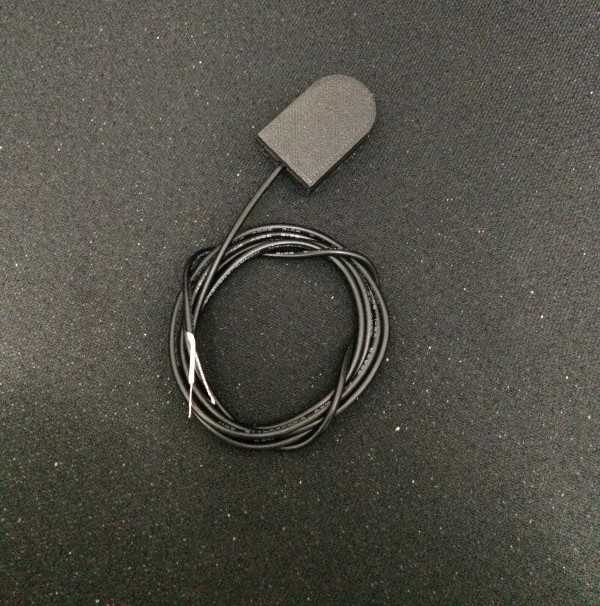

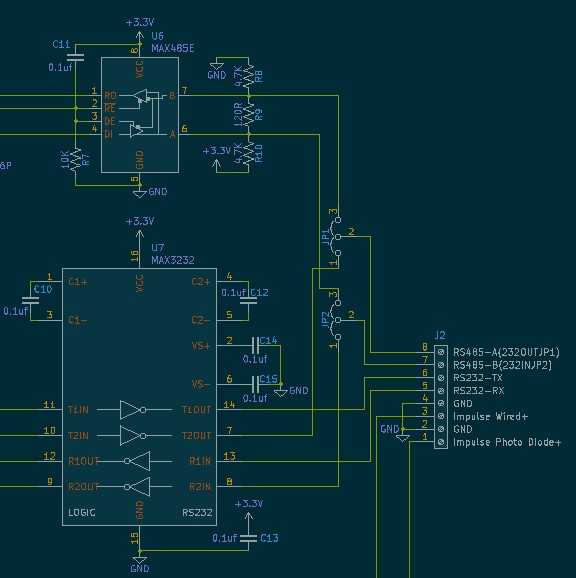

  photo_pulse_pin: GPIO22   # J2 Pin 1 - Shielded wire to a Photo diode GND = Cathode, Impluse = Anode
  wired_pulse_pin: GPIO27   # J2 Pin 3 - Input is zener clamped to 3.3v, max +50VDC, can also be configued for pullup with active low
  digi_pot_pin: GPIO25      # DAC voltage output, this GPIO allows you to digitally control photo diode sensitivity
  rs485_rx_pin: GPIO14      # J2 Pin 7 - RS485 B Input (JP2 2-3) Default
  rs485_tx_pin: GPIO16      # J2 Pin 8 - RS485 A Output (JP1 2-3) Default
  flow_control_pin: GPIO15  # RS485 Transmit/Recieve control
  rs232_rx_pin: GPIO19      # J2 Pin 5 - RS232 Recieve
  rs232_tx_pin: GPIO17      # J2 Pin 6 - RS232 Transmit
  rs232_in_pin: GPIO18      # J2 Pin 7 - Optional RS232 pin config when RS485 is not required (JP2 1-2)
  rs232_out_pin: GPIO20     # J2 Pin 8 - Optional RS232 pin config when RS485 is not required (JP1 1-2)

wifi:
  ssid: <YOUR_SSID> # or !secret wifi_ssid
  password: <YOUR_PASSWORD> # or !secret wifi_password

  ap:
    ssid: "grec1"
    password: ""
    ap_timeout: 10s

# Security is recommended!
web_server:
  port: 80
  # auth:
  #   username: !secret web_server_username
  #   password: !secret web_server_password

captive_portal:

uart:
  - id: uart_modbus_client
    tx_pin: ${rs485_tx_pin}
    rx_pin: ${rs485_rx_pin}
    baud_rate: 115200
    # debug:

#Digital to Analog Output Control
output:
  - platform: esp32_dac
    id: digi_pot_voltage
    pin: ${digi_pot_pin}

modbus:
  - uart_id: uart_modbus_client
    flow_control_pin: ${flow_control_pin} #Only required when using the RS485 interface
    id: modbus_client

modbus_controller:
  id: modbus_grec1
  modbus_id: modbus_client
  address: 0x02  # Address of the Modbus Device
  update_interval: 15s

number:
  # Set the pulse rate of the LED on your meter
  - platform: template
    id: select_pulse_rate
    name: 'Pulse rate - imp/kWh'
    optimistic: true
    mode: box
    min_value: 100
    max_value: 10000
    step: 100
    restore_value: yes
    initial_value: 10000

  # Reset total energy to given value
  - platform: template
    id: select_reset_total
    name: 'Reset Value - Total Energy kWh'
    entity_category: config
    optimistic: true
    mode: box
    min_value: 0
    max_value: 1000000
    step: 1
    initial_value: 0

  # Define a number input component to set DAC value
  - platform: template
    name: "Photo Sensitivity Level"
    id: dac_output_level
    min_value: 0
    max_value: 255
    initial_value: 127
    step: 1
    optimistic: true

    # Trigger action on value change
    on_value:
      then:
        - output.set_level:
            id: digi_pot_voltage
            level: !lambda "return x / 255.0;"
    restore_value: true

button:
  # Reset the total energy entity
  - platform: template
    id: button_reset_total
    name: "Reset - Total Energy"
    on_press:
      - pulse_meter.set_total_pulses:
          id: sensor_energy_pulse_meter
          value: !lambda "return id(select_reset_total).state * id(select_pulse_rate).state;"

  - platform: restart
    name: "Restart - GREC1"

sensor:
  # Photo diode pulse meter example (Glow meter)
  # This configuration requires the ${digi_pot_pin} output to be configured
  # The digital potentiometer defaults to an output value of ~1.5v
  # The photo diode circuit will conduct and drop below the reference when photons are absorbed.
  # You should set the digital voltage to be around the mid point of this voltage drop.
  # There is no need to measure it since if it's set to low or to high it stops detecting the pulse.
  # Once the range is known for example 120-140 then set it to 130 which is the mid point.
  # Not setting at the midpoint will cause significant false counts do to reading noise near the comparator threshhold.
  - platform: pulse_meter
    id: sensor_energy_pulse_meter
    name: '${friendly_name} - Power Consumption'
    unit_of_measurement: W
    state_class: measurement
    device_class: power
    icon: mdi:flash-outline
    accuracy_decimals: 0
    pin:
      number: ${photo_pulse_pin}
      inverted: true
      mode:
        input: true
        pullup: true

# Wired Example Active low
#    pin:
#      number: ${wired_pulse_pin}
#      inverted: true
#      mode:
#        input: true
#        pullup: true

    filters:
      # multiply value = (60 / imp value) * 1000
      # - multiply: 60
      - lambda: return x * ((60.0 / id(select_pulse_rate).state) * 1000.0);

    total:
      id: sensor_total_energy
      name: '${friendly_name} - Total Energy'
      unit_of_measurement: kWh
      icon: mdi:circle-slice-3
      state_class: total_increasing
      device_class: energy
      accuracy_decimals: 3
      filters:
        # multiply value = 1 / imp value
        # - multiply: 0.001
        - lambda: return x * (1.0 / id(select_pulse_rate).state);

  # Total day usage
  - platform: total_daily_energy
    id: sensor_total_daily_energy
    name: '${friendly_name} - Daily Energy'
    power_id: sensor_energy_pulse_meter
    unit_of_measurement: kWh
    icon: mdi:circle-slice-3
    state_class: total_increasing
    device_class: energy
    accuracy_decimals: 3
    filters:
      # Multiplication factor from W to kW is 0.001
      - multiply: 0.001
  - platform: wifi_signal
    name: "${friendly_name} - WiFi Signal"
    update_interval: 120s

# Modbus sensor example
#   - platform: modbus_controller
#     id: eMETER1_voltage_l1
#     modbus_controller_id: modbus_grec1
#     name: "eMETER1 voltage L1"
#     register_type: holding
#     address: 0x0000  # Address on the Modbus server
#     device_class: voltage
#     value_type: S_DWORD_R
#     accuracy_decimals: 1
#     unit_of_measurement: V

time:
  - platform: homeassistant
    id: homeassistant_time

status_led:
  pin: GPIO23
