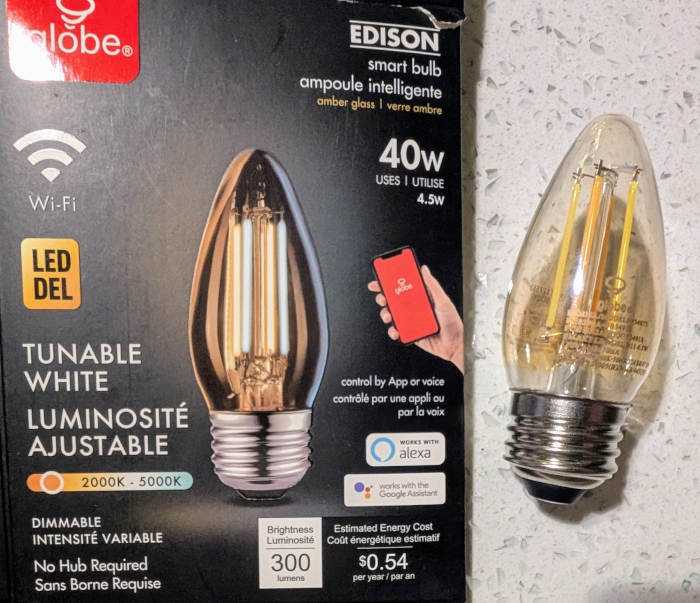

Globe Edison Bulb 34873
Globe Edison Bulb 34873
Device Type: lightElectrical Standard: usBoard: esp8266
The LEDs are controlled by 2 PWM output (Cold and White channels).
GPIO Pinout
| Pin | Function |
|---|---|
| GPIO12 | Warm White (PWM) |
| GPIO14 | Cold White (PWM) |
Getting it up and running
Tuya Convert
As the LED bulb do not have any physical buttons, by turning the bulb on and off three times, you will enter pairing mode. This will cause the bulb to start flashing.
Then follow the tuya-convert guide.
Configuration
# Basic Configesphome: name: "globe-34873" platform: ESP8266 board: esp01_1m esp8266_restore_from_flash: true
wifi: ssid: !secret wifi_ssid password: !secret wifi_password ap:
captive_portal:
logger:
api: encryption: key: !secret api_encryption_key
ota: password: "password"
output: - platform: esp8266_pwm id: ww pin: GPIO12 - platform: esp8266_pwm id: cw pin: GPIO14
light:- platform: cwww name: light cold_white: cw warm_white: ww cold_white_color_temperature: 5000 K warm_white_color_temperature: 2000 K restore_mode: RESTORE_DEFAULT_ON constant_brightness: true
