KinCony KC868-A4

KinCony KC868-A4

Device Type: relay
Electrical Standard: global
Board: esp32

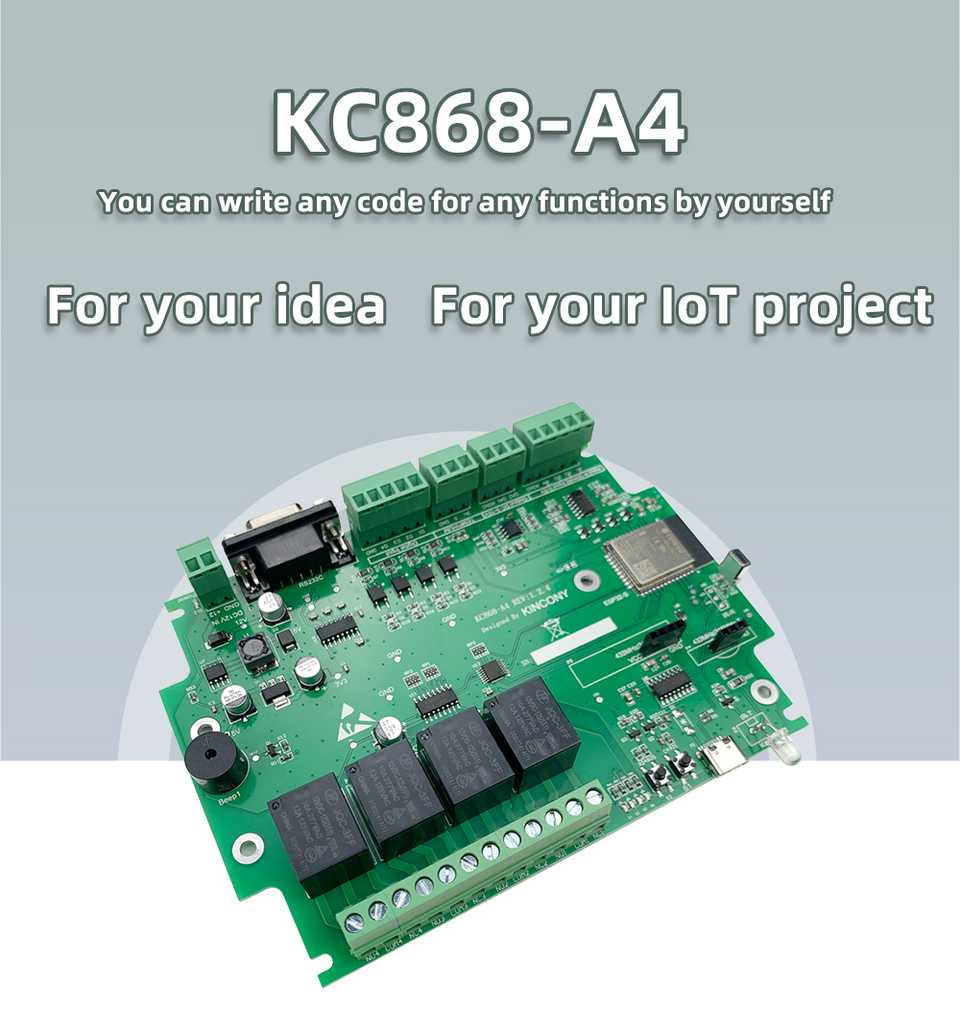

Product

GPIO Pinout

PinFunction
GPIO2Relay1
GPIO15Relay2
GPIO5Relay3
GPIO4Relay4
GPIO2digital input1
GPIO15digital input2
GPIO5digital input3
GPIO4digital input4
GPIO32analog input1
GPIO33analog input2
GPIO34analog input3
GPIO35analog input4
GPIO25analog output1
GPIO26analog output2
GPIO131-Wire GPIO
GPIO18beep
GPIO16RS232_RXD
GPIO17RS232_TXD
GPIO21433MHz Transmitter
GPIO19433MHz Receiver
GPIO23IR Receiver
GPIO22IR Transmitter
GPIO0PCB Button

Additional pinout/design details

Basic Configuration

# Basic Config
esphome:
  name: kc868-a4
  platform: ESP32
  board: esp32dev


# Enable logging
logger:


# Enable Home Assistant API
api:


ota:
  password: "4d5a388de4f759bf88e71cde7a31af6f"


wifi:
  ssid: "KinCony"
  password: "a12345678"


  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "Kc868-A4 Fallback Hotspot"
    password: "QOU4hbAjJ5Wb"


captive_portal:


switch:
  - platform: gpio
    name: "light1"
    pin: 2
    inverted: false


  - platform: gpio
    name: "light2"
    pin: 15
    inverted: false


  - platform: gpio
    name: "light3"
    pin: 5
    inverted: false


  - platform: gpio
    name: "light4"
    pin: 4
    inverted: false


binary_sensor:
  - platform: gpio
    name: "input1"
    pin:
      number: 36
      inverted: true


  - platform: gpio
    name: "input2"
    pin:
      number: 39
      inverted: true


  - platform: gpio
    name: "input3"
    pin:
      number: 27
      inverted: true


  - platform: gpio
    name: "input4"
    pin:
      number: 14
      inverted: true
