KinCony KC868-A6

KinCony KC868-A6

Device Type: relay
Electrical Standard: global
Board: esp32

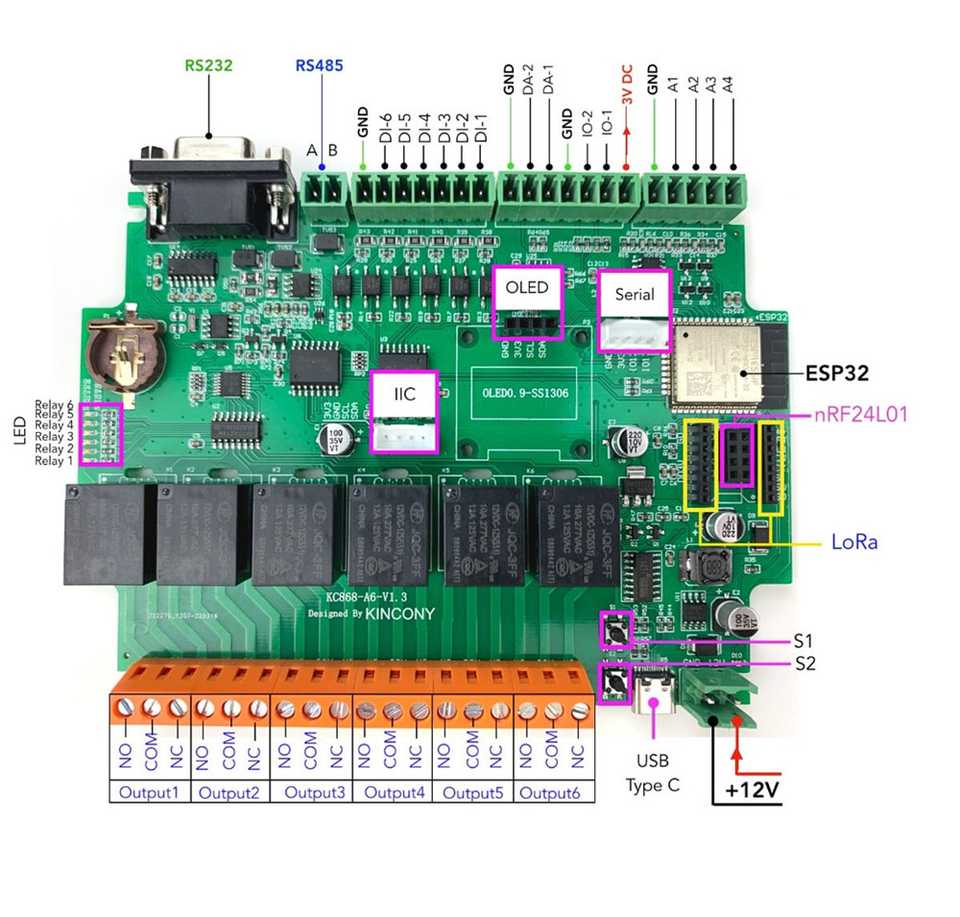

Product

GPIO Pinout

PinFunction
GPIO321-Wire GPIO IO-1
GPIO331-Wire GPIO IO-2
GPIO4I2C SDA
GPIO15I2C SCL
GPIO14RS485 RX
GPIO27RS485 TX
GPIO17RS232 RX
GPIO16RS232 TX
GPIO5SPI CS
GPIO23SPI MOSI
GPIO19SPI MISO
GPIO18SPI CSK
GPIO21LORA RST
GPIO2LORA DIO0
GPIO26Analog output DA1
GPIO25Analog output DA2
GPIO36Analog input A1
GPIO39Analog input A2
GPIO34Analog input A3
GPIO35Analog input A4

Additional pinout/design details

Installation

Connect the board with a USB-C cable to your commputer. While pressing the S2 switch, attach the external power supply (12V) to the board. Erase flash and then flash the board with the usual ESPHome installation methods.

Basic Configuration

# Basic Config
esphome:
  name: kc868-a6


esp32:
  board: esp32dev
  framework:
    type: esp-idf


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password


logger:


api:
  encryption:
    key: !secret encryption_key


ota:
  - platform: esphome
    password: !secret ota_password


uart:
  - id: rs485
    tx_pin: GPIO27
    rx_pin: GPIO14
    baud_rate: 9600
  - id: rs232
    tx_pin: GPIO17
    rx_pin: GPIO16
    baud_rate: 9600


spi:
  clk_pin: GPIO18
  mosi_pin: GPIO23
  miso_pin: GPIO19
  # cs pin: GPIO5


i2c:
  sda: GPIO4
  scl:
    number: GPIO15
    ignore_strapping_warning: true


pcf8574:
  - id: inputs
    address: 0x22
  - id: outputs
    address: 0x24


time:
  - platform: ds1307
    id: rtc_time


binary_sensor:
  - platform: gpio
    name: "KC868-A6-IN-1"
    pin:
      pcf8574: inputs
      number: 0
      mode: INPUT
      inverted: true
  - platform: gpio
    name: "KC868-A6-IN-2"
    pin:
      pcf8574: inputs
      number: 1
      mode: INPUT
      inverted: true
  - platform: gpio
    name: "KC868-A6-IN-3"
    pin:
      pcf8574: inputs
      number: 2
      mode: INPUT
      inverted: true
  - platform: gpio
    name: "KC868-A6-IN-4"
    pin:
      pcf8574: inputs
      number: 3
      mode: INPUT
      inverted: true
  - platform: gpio
    name: "KC868-A6-IN-5"
    pin:
      pcf8574: inputs
      number: 4
      mode: INPUT
      inverted: true
  - platform: gpio
    name: "KC868-A6-IN-6"
    pin:
      pcf8574: inputs
      number: 5
      mode: INPUT
      inverted: true


switch:
  - platform: gpio
    name: "KC868-A6-RELAY-1"
    id: relay_1
    pin:
      pcf8574: outputs
      number: 0
      mode: OUTPUT
      inverted: true
  - platform: gpio
    name: "KC868-A6-RELAY-2"
    id: relay_2
    pin:
      pcf8574: outputs
      number: 1
      mode: OUTPUT
      inverted: true
  - platform: gpio
    name: "KC868-A6-RELAY-3"
    id: relay_3
    pin:
      pcf8574: outputs
      number: 2
      mode: OUTPUT
      inverted: true
  - platform: gpio
    name: "KC868-A6-RELAY-4"
    id: relay_4
    pin:
      pcf8574: outputs
      number: 3
      mode: OUTPUT
      inverted: true
  - platform: gpio
    name: "KC868-A6-RELAY-5"
    id: relay_5
    pin:
      pcf8574: outputs
      number: 4
      mode: OUTPUT
      inverted: true
  - platform: gpio
    name: "KC868-A6-RELAY-6"
    id: relay_6
    pin:
      pcf8574: outputs
      number: 5
      mode: OUTPUT
      inverted: true
