# Basic Config

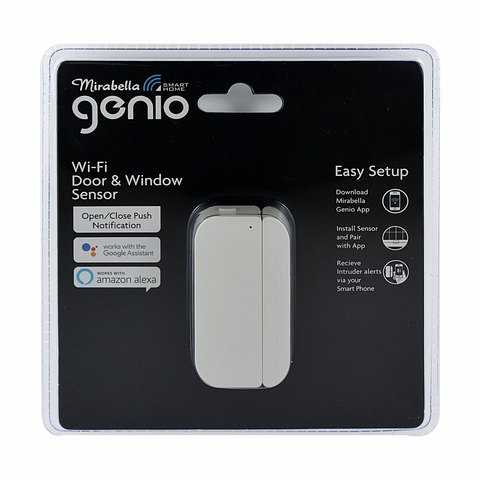

# https://mirabellagenio.net.au/door-%26-window-sensor
esphome:
  name: mirabella_genio_door_window_sensor
  platform: ESP8266
  board: esp01_1m
  arduino_version: 2.5.1
  board_flash_mode: dout
  includes:
    - sb1_uart.h

wifi:
  ssid: 'Wifi SSID'
  password: !secret wifi_pw
  fast_connect: true

mqtt:
  broker: 'x.x.x.x'
  username: !secret mqtt_un
  password: !secret mqtt_pw
  birth_message:
  shutdown_message:
  will_message:

uart:
  - tx_pin: 1
    rx_pin: 3
    baud_rate: 9600
    id: uart0

ota:

logger:
  level: INFO
  hardware_uart: UART1

sensor:
#  - platform: wifi_signal
#    name: "Door WiFi Signal"
#    update_interval: never
#    expire_after:
#    filters: []
  - platform: adc
    name: "Doow Window Battery"
    update_interval: 1s
    expire_after:
    pin: VCC
    filters:
      - calibrate_linear:
          # Map volts (from sensor) to % (for HA)
          - 2.8 -> 0.0
          - 3.6 -> 100
    unit_of_measurement: "%"
    accuracy_decimals: 0

binary_sensor:
  - platform: template
    id: door
    name: "Door Window Sensor"
    filters: []
    device_class: door
    lambda: "return {};"

custom_component:
  - id: sb1_uart
    lambda: |-
      auto component = new SB1UARTComponent(id(uart0), id(door));
      return {component};
