Shelly 1 Mini Gen3

Shelly 1 Mini Gen3

Device Type: relay
Electrical Standard: euukus
Board: esp32
Difficulty: Soldering required, 4/5

Generation 3 of Shelly Mini. With Relay, but no Powermeter.

GPIO Pinout

PinFunction
GPI00LED
GPI01Button
GPI03NTC
GPI07Relay
GPI10Switch

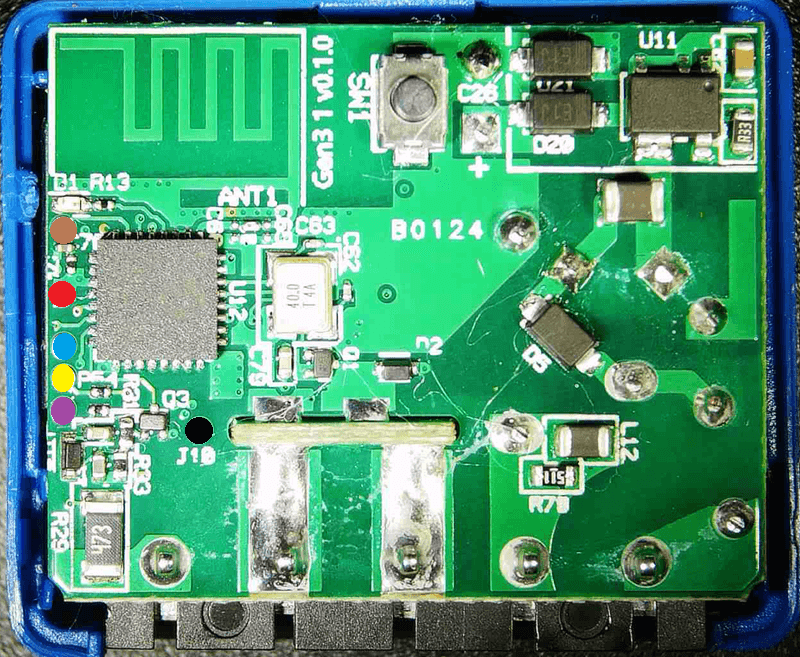

Serial Pinout

The UART Pinout is the same as other Shelly Mini.

PinColour
ResetBrown
3v3Red
RXBlue
TXYellow
BootSELPurple
GNDBlack

Shelly 1 Mini Gen3

Basic Configuration

esphome:
  name: "shelly-1-mini-gen3"
  friendly_name: "Shelly 1 Mini Gen3"


esp32:
  board: esp32-c3-devkitm-1
  flash_size: 8MB
  framework:
    type: esp-idf
    version: recommended
    sdkconfig_options:
      COMPILER_OPTIMIZATION_SIZE: y


wifi:
  ap:


logger:


api:


ota:


time:
  - platform: homeassistant


captive_portal:


sensor:
  - platform: ntc
    sensor: temp_resistance_reading
    name: "Temperature"
    unit_of_measurement: "°C"
    accuracy_decimals: 1
    icon: "mdi:thermometer"
    calibration:
      b_constant: 3350
      reference_resistance: 10kOhm
      reference_temperature: 298.15K
  - platform: resistance
    id: temp_resistance_reading
    sensor: temp_analog_reading
    configuration: DOWNSTREAM
    resistor: 10kOhm
  - platform: adc
    id: temp_analog_reading
    pin: GPIO3
    attenuation: 12db


output:
  - platform: gpio
    id: "relay_output"
    pin: 7


switch:
  - platform: output
    id: "relay"
    name: "Relay"
    output: "relay_output"


binary_sensor:
  - platform: gpio
    name: "Switch"
    pin: 10
    on_press:
      then:
        - switch.toggle: "relay"
    filters:
      - delayed_on_off: 50ms


  - platform: gpio
    name: "Button"
    pin:
      number: 1
      inverted: yes
      mode:
        input: true
        pullup: true


status_led:
  pin:
    number: 0
    inverted: true
