Sinilink XY-WFMS

Sinilink XY-WFMS

Device Type: relay
Electrical Standard: global
Board: esp8266

This device can be found on Aliexpress for about 5 USD.

Flashing

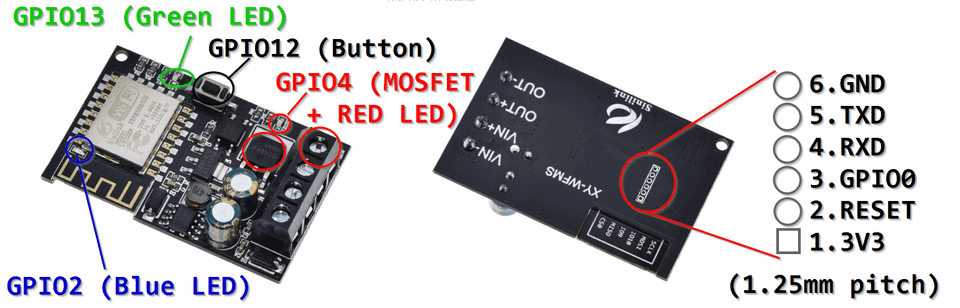

alt text

Can be tricky to solder the ground connection to the PCB due to heavy ground plane, I used P50 pogo pins in a printed adapter for 6x1.25mm but the Vin- screw terminal could also be used for conveient ground connection.

GPIO Pinout

PinFunction
GPIO02Blue LED
GPIO04Relay and Red LED
GPIO12Toggle Button
GPIO13Green LED

Basic Config

The following configuration is adapted from https://github.com/esphome/esphome-devices/blob/main/_devices/Sinilink-XY-WFUSB-USB-Switch-Relay/Sinilink-XY-WFUSB-USB-Switch-Relay.md with only minor changes to fit the new device.

There is a 3D printable case available from https://www.thingiverse.com/thing:4638431 which I remixed from https://www.thingiverse.com/thing:4146127

substitutions:
  devicename: xy_wfms
  upper_devicename: "Sinilink XY-WFMS ESP8266 Wifi Mosefet"


esphome:
  name: $devicename
  platform: ESP8266
  board: esp01_1m
captive_portal:


# Enable logging
logger:


# Enable Home Assistant API (if available i.e. reboot_timeout=0s)
api:
  reboot_timeout: 0s


ota:
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  #use_address: 10.0.0.230


  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: !secret ap_ssid
    password: !secret ap_password
    ap_timeout: 3min


web_server:
  port: 80


status_led:
  pin:
    number: GPIO2 # blue led
    inverted: true #off when ok


switch:
  # Relay (has red led hardwired; relay on = led on)
  - platform: gpio
    id: relay
    pin: GPIO4
    restore_mode: RESTORE_DEFAULT_OFF


  # green led
  - platform: gpio
    pin: GPIO13
    id: green_led
    inverted: false
    restore_mode: RESTORE_DEFAULT_ON


  #  # blue led (if _not_ used for status led)
  #  - platform: gpio
  #    pin: GPIO2
  #    id: blue_led
  #    inverted: true
  #    restore_mode: RESTORE_DEFAULT_OFF


  # Switch template to link relay and green led states
  # green led is on when relay is off
  - platform: template
    id: "${devicename}_relay"
    name: $upper_devicename
    lambda: |-
      if (id(relay).state) {
        return true;
      } else {
        return false;
      }
    turn_on_action:
      - switch.turn_off:
          id: green_led
      - switch.turn_on: #also turns red led on
          id: relay
    turn_off_action:
      - switch.turn_on:
          id: green_led
      - switch.turn_off: #also turns red led off
          id: relay


# Button
binary_sensor:
  - platform: gpio
    id: button
    pin:
      number: GPIO12
      mode: INPUT_PULLUP
      inverted: True
    on_press:
      - switch.toggle: "${devicename}_relay"
