Tuya AP Future CCT LED Controller

Tuya AP Future CCT LED Controller

Device Type: light
Electrical Standard: global
Board: esp8266

General Notes

Tuya AP Future CCT LED Controller with a tywe3s chip.

Available on aliexpress from multiple vendors.

Other versions of this controller are available that do RGB, RGBW, RGBCW.

Flashed using the Digiblur Clamp method

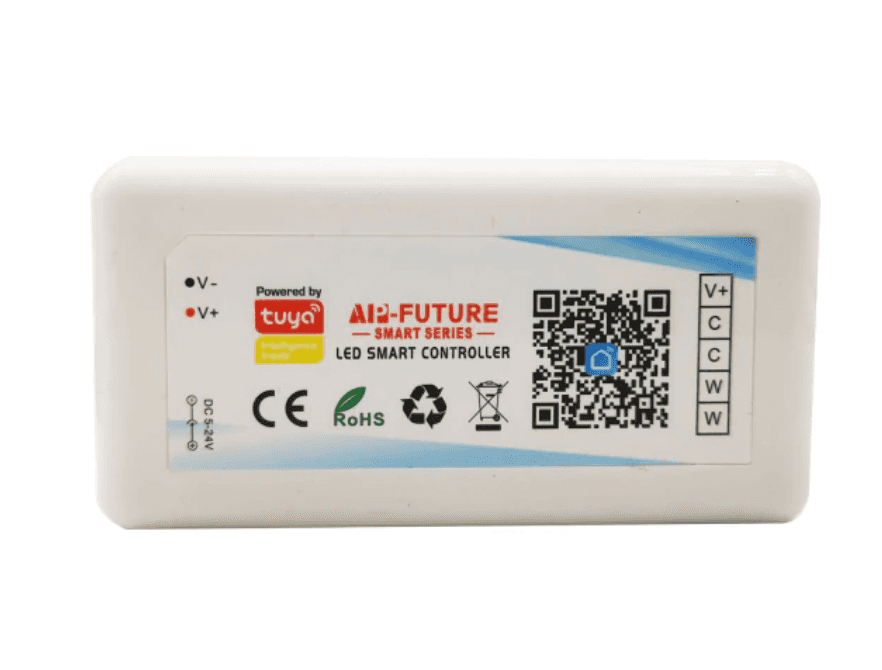

alt text

GPIO Pinout

PinFunction
GPIO5Cold White Channel
CPIO13Warm White Channel

Basic Configuration

# Basic Config


substitutions:
  device_name: led_strip
  device_description: CCT LED Strip.
  friendly_name: CCT LED strip


esphome:
  name: ${device_name}
  comment: ${device_description}
  platform: ESP8266
  board: esp01_1m


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password


  ap: #since we listed an SSID above, this AP mode will only enable if no WiFi connection could be made
    ssid: ${friendly_name}_AP
    password: !secret wifi_password


captive_portal:


# Enable logging
logger:
  baudrate: 0 #Disable UART logging


# Enable Home Assistant API
api:


ota:


# Enable web server
web_server:
  port: 80


# Device Specific Config


light:
  - platform: cwww
    name: "CCT Lights"
    cold_white: cold_white_channel
    warm_white: warm_white_channel
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K


output:
  - platform: esp8266_pwm
    id: warm_white_channel
    pin: GPIO13
  - platform: esp8266_pwm
    id: cold_white_channel
    pin: GPIO5
